InputGamepadButton

Declaration

enum class InputGamepadButton {
        Any, // Any gamepad button
        Face1, // First face button
        Face2, // Second face button
        Face3, // Third face button
        Face4, // Fourth face button
        Start, // Start face button
        Select, // Select face button
        Guide, // Guide face button
        LeftStick, // Left stick button
        RightStick, // Right stick button
        LeftBumper, // Left shoulder button
        RightBumper, // Right shoulder button
        DPadLeft, // Directional pad left button
        DPadRight, // Directional pad right button
        DPadUp, // Directional pad up button
        DPadDown // Directional pad down button
};

Notes

The gamepad’s layout depends on the type of gamepad used.

Generally, Face1 is the button to confirm, while Face2 is the button to cancel.

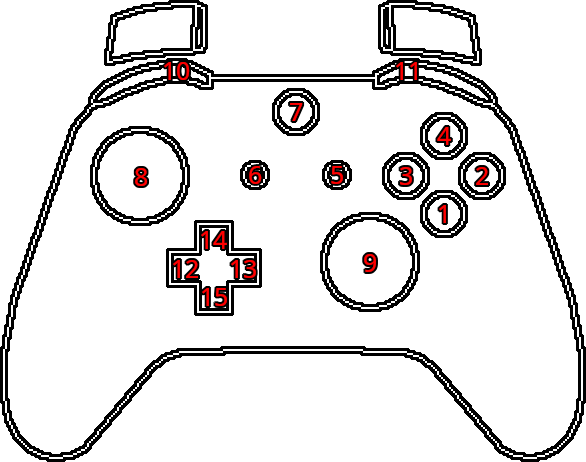

Number	Value	Description
1	Face1	The “confirm” face button.
2	Face2	The “cancel” face button.
3	Face3	The face button next to `Face1`.
4	Face4	The face button next to `Face2`.
5	Start	The “pause” button.
6	Select	The button next to, or opposed to, `Start`.
7	Guide	The button used to open a platform-specific menu.
8	LeftStick	The button on the left stick.
9	RightStick	The button on the right stick.
10	LeftBumper	The left shoulder button.
11	RightBumper	The right shoulder button.
12	DPadLeft	The directional-pad left button.
13	DPadRight	The directional-pad right button.
14	DPadUp	The directional-pad up button.
15	DPadDown	The directional-pad down button.

The left and right triggers are not available here as they are analogic buttons.
