GPU-driven Particle Rendering

As I wanted to add particles to NutshellEngine, I had to learn how particles actually work. To do so, I read Vulkan Tutorial’s page about Compute Shaders, as it implemented a simple particle renderer. This part of the tutorial used the GPU a lot but lacked many features I needed for my game engine (it’s a tutorial for Vulkan beginners, so it makes sense to not do something complete).

After working on it, I found a solution I appreciate, that implements the features I need in NutshellEngine’s particle system while using the GPU as much as possible.

The general concept

To start simple, particles will only be points (the topology type). They have a position, a direction, a speed, a size, a duration (time before they disappear) and a color.

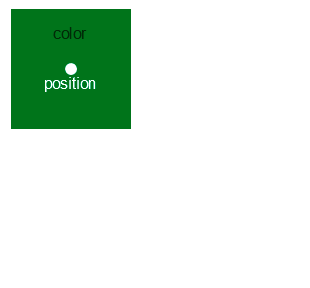

A particle

A particle

Generally, we can see hundreds or thousands of particles on the screen at once, and each particle must be updated each frame to calculate the new position and destroy the particle if its duration time has been reached. These thousands of particles can be updated on the CPU, with either a single or multiple threads, but we also have another device that can do thousands of treatments at once: the GPU.

A particle

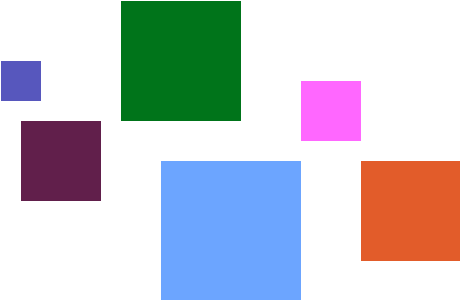

Multiple particles, with different color and size

The goal here is to use the GPU as much as possible to avoid going back and forth between the CPU and the GPU, which would add a load of latency due to synchronization.

In this whole process, and in the case of a game engine, there is one thing that we cannot do without the CPU: getting the initial particles information, so their initial position, direction, duration, color, etc. They are generally specified by the user using the game engine’s API and need to be sent from the host (CPU) to the device (GPU).

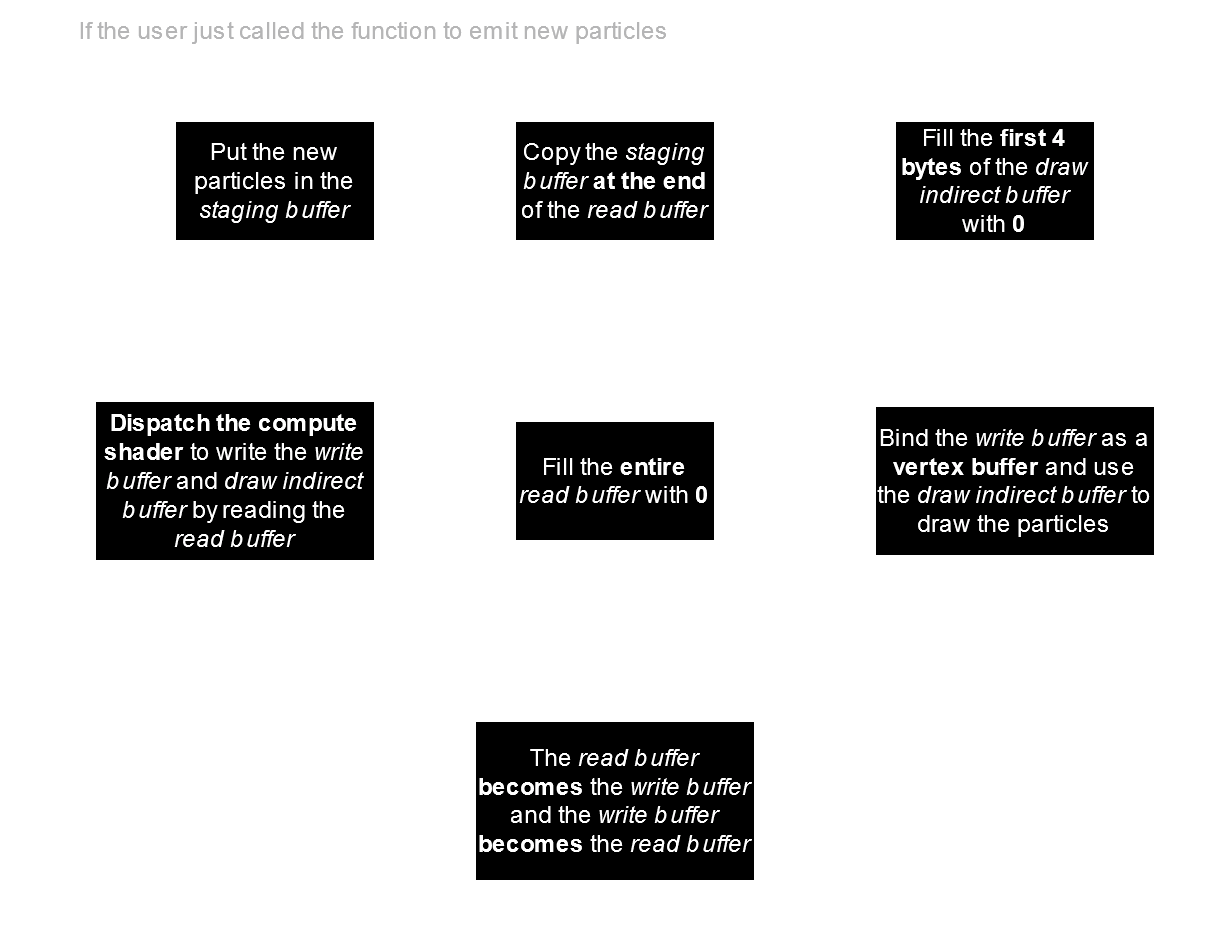

The complete process

The complete process

The complete process for a single frame

Initialization

For our particles, this is the C++ structure I am using:

struct Particle {
	vec3 position = { 0.0f, 0.0f, 0.0f };
	float size = 0.0f;
	vec4 color = { 0.0f, 0.0f, 0.0f, 0.0f };
	vec3 direction = { 0.0f, 0.0f, 0.0f };
	float speed = 0.0f;
	float duration = 0.0f;
	vec3 padding = { 0.0f, 0.0f, 0.0f }; // Using the std140 layout, some padding is needed for alignment
};

position, size and color are at the start because they are vertex attributes that will be used when the buffer written this frame is read as a vertex buffer.

This method requires 4 buffers:

The draw indirect buffer will be exactly 16 bytes long if you are using Vulkan, because it is the size of the VkDrawIndirectCommand structure. The bytes 4 to 16, so the last 3 unsigned integers, will be [1, 0, 0] (1 instance, first vertex is 0 and first instance is 0), and once it is initialized, we will only write on the first 4 bytes, so the first unsigned integer, which is the vertexCount parameter.

These two last buffers are the read and write buffers, and if we call them bufferA and bufferB, then bufferA will be the read buffer on odd frames and the write buffer on even frames, and bufferB will be the write buffer on odd frames and the read buffer on even frames.

These two last buffers must also have the same size. Here, our C++ Particle structure is 64 bytes, so if we consider that we support at maximum 100.000 particles, their size will be 64 * 100000 = 6400000 bytes, or 6.4MB each.

(1) and (2) only happen the frames new particles are emitted.

(1) Emit new particles

When the game needs new particles to spawn, so when a gameplay script calls the function to emit new particles, these particles must be created and transferred from the CPU to the GPU, this is the purpose of the staging buffer.

This is kind of off-topic for this article but can help people that want to make a particle system, for my particle emitter, I have a “min” and “max” for all the parameters (like sizeMin and sizeMax) and for each particle, I draw a random float between 0.0 and 1.0 (let’s call it t) and call lerp (linear interpolation) between sizeMin, sizeMax and this random value t to add randomness to the created particles.

All these particles go inside a vector and are copied to the CPU staging buffer.

(2) Copy these particles on the GPU

We are copying the new particles at the end of the current read buffer because we don’t want to write on currently active particles, that will all be tightly packed at the start of the read buffer.

Emitting particles

The read buffer after emitting new particles

In a random frame N, this is what our read buffer for this current frame would look like, we have the already present and still active particles at the start, then some random data in the middle (unactive particles or just nothing), and the new particles at the end.

(3) Fill the draw indirect buffer

A draw indirect is a GPU command that acts like a draw command but the parameters are specified in a buffer instead of directly in the function’s parameters. The interesting part of draw indirect is that you can generate these draw parameters in a compute shader and read them directly in the draw indirect command, without having to read back the buffer from the GPU to the CPU to extract these parameters.

Later, we are going to draw our particles using the vkCmdDrawIndirect command (if you are using Vulkan, or equivalent in whatever graphics API you are using). Our draw indirect buffer is already filled with [1, 0, 0] at the end (from the initialization), so what is missing now is the first 4 bytes, the vertexCount, which is also our currently active particles count. In this step, we are putting a 0 in it to reset it.

(4) Dispatch the compute shader

This is where we are going to update our particles, welcome the newly emitted ones and say goodbye to the ones who reached their duration.

Here is the GLSL compute shader I wrote to do this:

#version 460

layout(local_size_x = 64) in;

struct Particle {
	vec3 position;
	float size;
	vec4 color;
	vec3 direction;
	float speed;
	float duration;
};

layout(set = 0, binding = 0) restrict readonly buffer InParticles {
	Particle particles[];
} inParticles;

layout(set = 0, binding = 1) restrict writeonly buffer OutParticles {
	Particle particles[];
} outParticles;

layout(set = 0, binding = 2) buffer OutDrawIndirect {
	uint vertexCount;
} outDrawIndirect;

layout(push_constant) uniform DeltaTime {
	float deltaTime;
} dT;

void main() {
	uint index = gl_GlobalInvocationID.x;

	Particle inParticle = inParticles.particles[index];

	float newDuration = inParticle.duration - dT.deltaTime;
	if (newDuration >= 0.0) {
		uint particleIndex = atomicAdd(outDrawIndirect.vertexCount, 1);

		outParticles.particles[particleIndex].position = inParticle.position + (inParticle.direction * inParticle.speed * dT.deltaTime);
		outParticles.particles[particleIndex].size = inParticle.size;
		outParticles.particles[particleIndex].color = inParticle.color;
		outParticles.particles[particleIndex].direction = inParticle.direction;
		outParticles.particles[particleIndex].speed = inParticle.speed;
		outParticles.particles[particleIndex].duration = newDuration;
	}
}

And the explanation:

layout(local_size_x = 64) in;

We are working on one-dimensional buffers so we only need to specify the local_size_x. For the local workgroup size, NVIDIA recommends a multiple of 32 and AMD a multiple of 64, so I decided to go with 64, as 32 is not a multiple of 64.

struct Particle {
	vec3 position;
	float size;
	vec4 color;
	vec3 direction;
	float speed;
	float duration;
};

This is the shader version of our C++ Particle structure.

layout(set = 0, binding = 0) restrict readonly buffer InParticles {
	Particle particles[];
} inParticles;

layout(set = 0, binding = 1) restrict writeonly buffer OutParticles {
	Particle particles[];
} outParticles;

Our two GPU buffers, inParticles is the read buffer and outParticles is the write buffer.

Particle particles[]; means that the buffer data contains an arbitrary number of Particles.

layout(set = 0, binding = 2) buffer OutDrawIndirect {
	uint vertexCount;
} outDrawIndirect;

This our draw indirect buffer but we only bound the first 4 bytes as we don’t need to write on the rest.

layout(push_constant) uniform DeltaTime {
	float deltaTime;
} dT;

The delta time is here given through a push constant but you can pass it to the shader through any way you want. We need it so we can deduce it from the duration of our particles and make our particles move the same speed, whatever the framerate is.

uint index = gl_GlobalInvocationID.x;

Particle inParticle = inParticles.particles[index];

We are getting the index this invocation is going to read from the read buffer via its global invocation ID, this value is given by GLSL in compute shaders and is unique for each invocation of this compute shader, so each invocation is going to read a different particle.

float newDuration = inParticle.duration - dT.deltaTime;

Here, we are using the delta time to calculate the new duration of the current particle, which is its time left.

if (newDuration >= 0.0) {

We are only going to consider working on this particle if it still has some time left, else we can ignore it and this is how we are “destroying” particles by simply doing nothing.

uint particleIndex = atomicAdd(outDrawIndirect.vertexCount, 1);

In this line, we are doing two things:

Compute shaders are running in parallel so we need this atomic operation to ensure that only one invocation can read and write on outDrawIndirect.vertexCount at a time. Note that atomicAdd returns the value before the operation, so if outDrawIndirect.vertexCount is 0 and we do uint particleIndex = atomicAdd(outDrawIndirect.vertexCount, 1);, particleIndex will be 0 and outDrawIndirect.vertexCount will be 1.

outParticles.particles[particleIndex].position = inParticle.position + (inParticle.direction * inParticle.speed * dT.deltaTime);
outParticles.particles[particleIndex].size = inParticle.size;
outParticles.particles[particleIndex].color = inParticle.color;
outParticles.particles[particleIndex].direction = inParticle.direction;
outParticles.particles[particleIndex].speed = inParticle.speed;
outParticles.particles[particleIndex].duration = newDuration;

This is where the particles are updated. The new position depends on the previous position (the one in the read buffer) + the (normalized) direction weighted by both the particle’s speed and the delta time. The duration is also updated to be deduced with the delta time (that we already calculated sooner in newDuration).

We are writing at the particleIndex index we just got. This way, all active particles will be at the start of the write buffer, and the final value of outDrawIndirect.vertexCount, after the compute shader is completely done executing, will tell us that the outDrawIndirect.vertexCount first particles in the write buffer are alive and must be rendered.

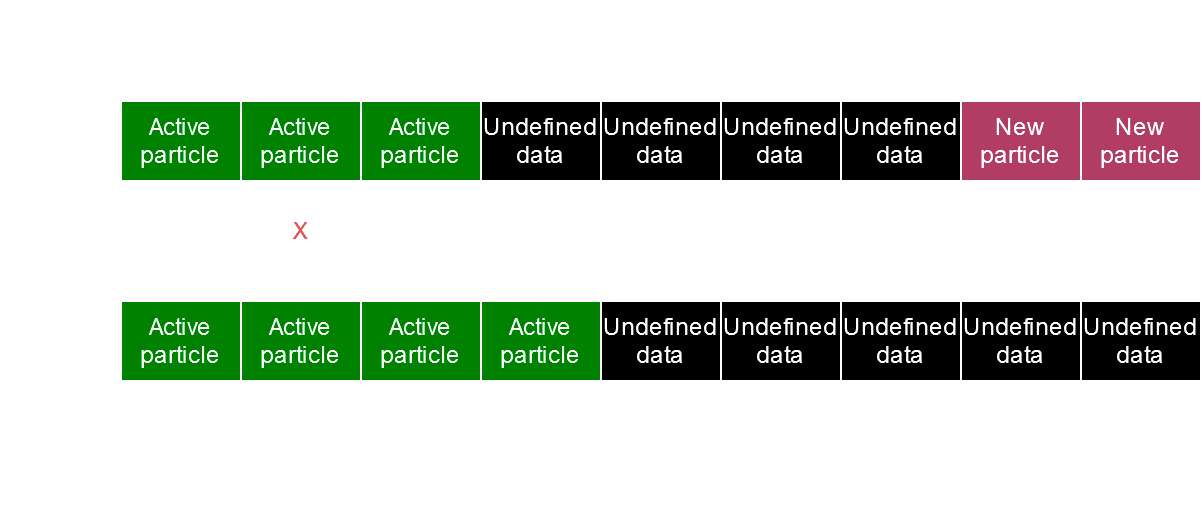

Compute shader

A representation of the states of the buffers after the compute shader

In this example, the read buffer contains 3 already existing particles (at the start of the buffer) and 2 new particles (at the end of the buffer). One of these particles’ duration will reach 0.0 or less, so it won’t be active anymore. After the compute shader, the write buffer contains, at the start, the two left already active particles and the two new particles, the durations and other parameters were also updated. (Note that this is just a representation and it probably won’t be as ordered if you try to inspect the values in RenderDoc as the compute shader runs in parallel, so the order of active particles will get scrambled, but it doesn’t matter).

The compute shader is dispatched using a dispatch command, like vkCmdDispatch on Vulkan. Its parameters depend on the maximum number of particles we support. If we support at maximum 100.000 particles, then the parameters will be [((100000 + 64 - 1) / 64), 1, 1]. you can replace “100000” with any maximum number of particles you want to support, the “64” comes from the local_size_x of our compute shader, and the two “1”s are here because we are only working on one-dimensional data.

(5) Fill the read buffer

This step can seem weird at first but is absolutely necessary. The read buffer will be filled with 0. There are two reasons for this:

(6) Draw the particles

It is now time to draw these particles. The write buffer is bound as the vertex shader, with position, size and color as vertex attributes.

The draw call is a draw indirect command, using the draw indirect buffer to get its parameters, the first 4 bytes contain the number of vertices to draw, which is also the number of active particles, the rest of the parameters have been written in this buffer at initialization and won’t change.

This is the vertex shader:

#version 460

layout(set = 0, binding = 0) uniform Camera {
	mat4 view;
	mat4 projection;
} camera;

layout(location = 0) in vec3 position;
layout(location = 1) in float size;
layout(location = 2) in vec4 color;

layout(location = 0) out vec4 fragColor;

void main() {
	gl_PointSize = size;
	gl_Position = camera.projection * camera.view * vec4(position, 1.0);
	fragColor = color;
}

We are rendering points so we are using gl_PointSize to set their sizes using the size vertex attribute.

The camera is also passed to correctly place the particles on the image.

And here is the fragment shader:

#version 460

layout(location = 0) in vec4 fragColor;

layout(location = 0) out vec4 outColor;

void main() {
	outColor = fragColor;
}

We use the color we passed from the vertex attribute to the vertex shader to the fragment shader.

(7) Prepare for next frame: swap the buffer roles

For the next frame, the read buffer becames the write buffer and the write buffer becomes the read buffer. This way, the new write buffer will read the previous frame’s write buffer in the compute shader, which contains the updated particles data. I use an array of 2 buffers to store these buffers so I simply do m_inParticleBufferCurrentIndex = (m_inParticleBufferCurrentIndex + 1) % 2; to swap their roles, accessing the read buffer with m_inParticleBufferCurrentIndex and the write buffer with (m_inParticleBufferCurrentIndex + 1) % 2 (so if 0 is the read buffer, 1 is the write buffer and vice-versa).

Results

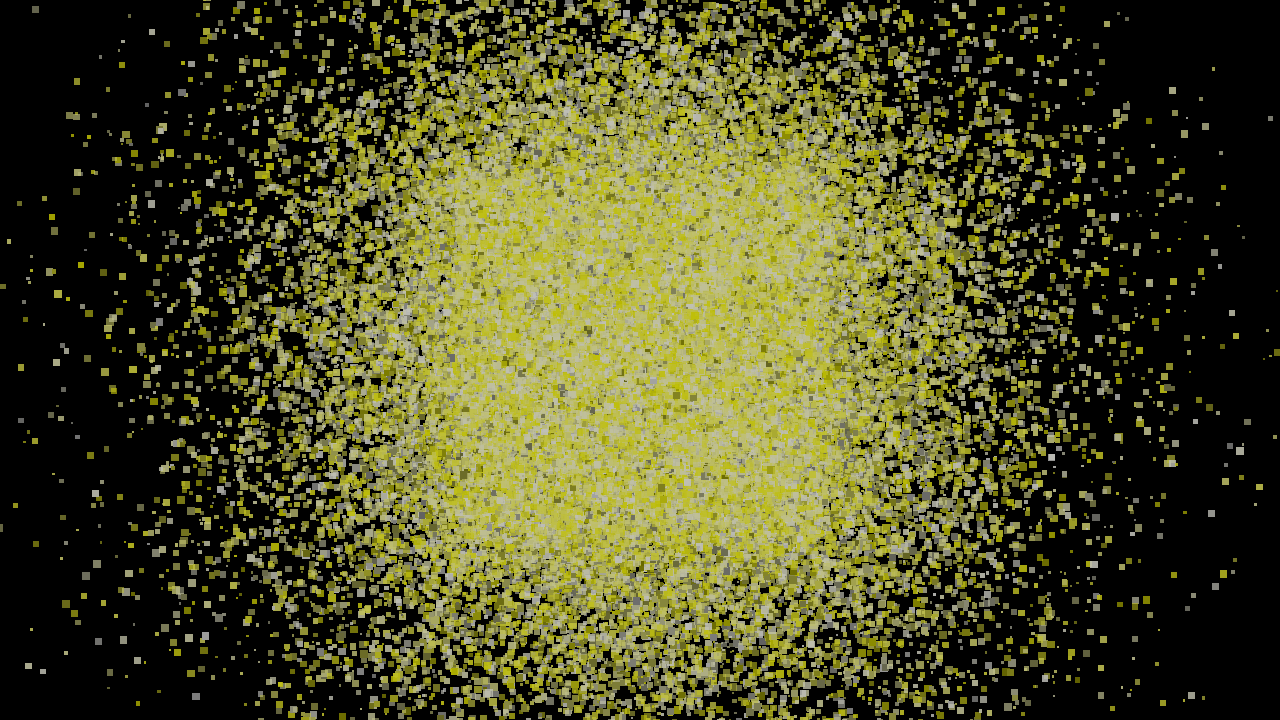

Particles

On this frame, we have 99720 particles, in a 3D world, with the camera and transparency.

The compute shader takes 0.05ms and the draw takes 0.17ms on an NVIDIA RTX 4070 GPU.

Here is a video with 3 different examples of particle emitters:

Going further

This article presents a simple GPU-driven particle rendering method, but it can be extended further:
